1. Feature

(1)    Wide Input Voltage 90 to 305VAC, 47 to 63Hz

(1)    Over Voltage / Short Circuit / Over Temperature Protection

(1)    High Efficiency (up to 88%), Active Power Factor Correction (PFC)

(1)    IP67 Waterproof Rating, Fully isolated

(1)    Comply to worldwide safety regulations for lighting

(1)    Cooling by free air convection

             (1)     Suitable for LED lighting & moving sign applications, for dry / damp / wet locations

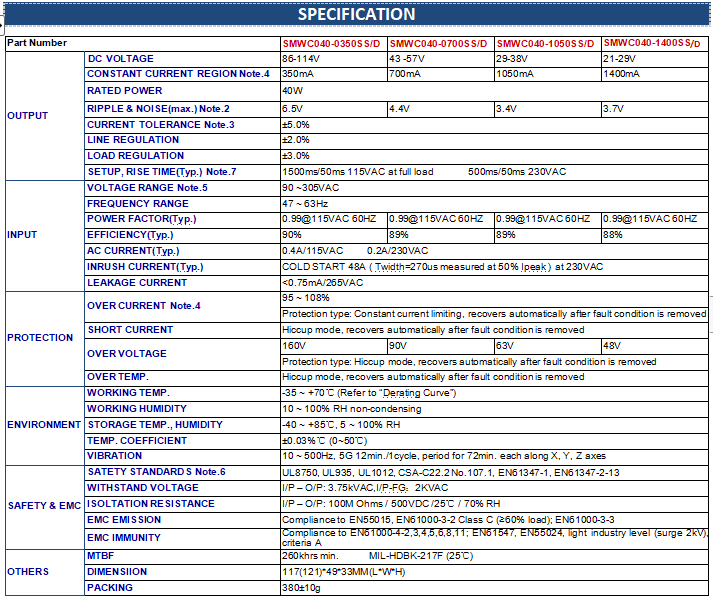

2. Specification

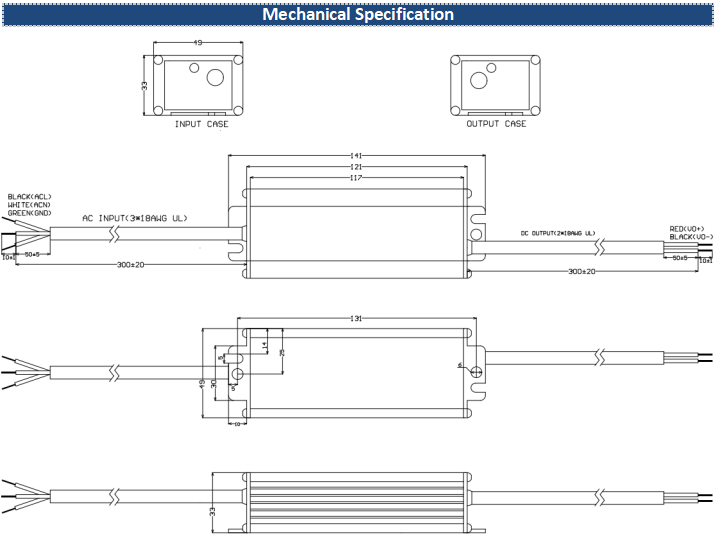

3. Mechanical Specification
