1. Feature

(1)   Wide Input Voltage 90 to 305VAC, 47 to 63Hz

(2)   Over Voltage / Short Circuit / Over Temperature Protection

(3)   High Efficiency (up to 90%), Active Power Factor Correction (PFC)

(4)   IP66 Waterproof Rating

(5)   Selectable dimming function ( 0~5V / 0~10V )

(6)   Cooling by free air convection

               (7)    Input Surge Protection:4KV line-line

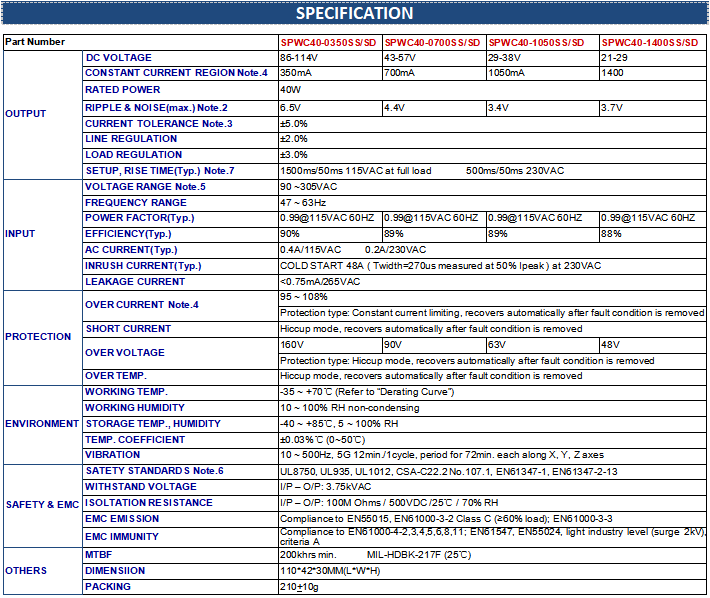

2. Specification

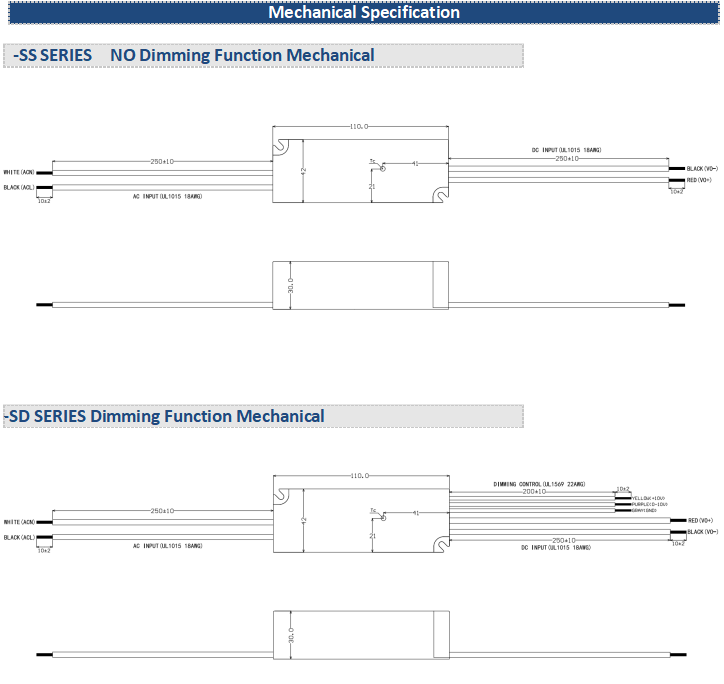

3. Mechanical Specification
